Product features
- WiFi connectivity with remote control via app
- Touchscreen LED display
- ECO energy-saving mode
- Away mode
- Child lock function
- Dual sensor control (room + floor) or floor-only mode
- Maximum floor temperature limitation
- Compatible with 10kOhm(default) & 15 kOhm floor sensor types
- Frost protection mode
- Open window detection
- Temperature calibration function
- Advanced programmable scheduling via App
Ambient temperature
Cable specification
Connection
Dimensions (H/W/D)
Floor temperature limit
Frost protection
IP class
Operation voltage
Pollution degree
Protection class
Regulation
Relay: Resistive load / Inductive load
Sensing unit
Standby power consumption
Storage temperature
Transmission Frequency
Transmission Power
Weight
Veria Controls
Veria Control WT45
0 °C to 40 °C
Max: 1 x 4 mm² or 2 x 2.5 mm²
Wi-Fi 802.11 b/g/n
86 × 86 × 15.5 mm
20-45°C
5 °C
IP20
AC 85–250 V ~ 50/60 Hz
2 (domestic use)
Class II
Hysteresis ±0.5°C
< 16 A / < 1 A
NTC 10 kΩ (default) / NTC 15 kΩ
< 0.5 W
-20 °C to 60 °C, 90% RH non-condensing
2,412 – 2,472 GHz
< 20 dBm
150 g
| Product number | Description |

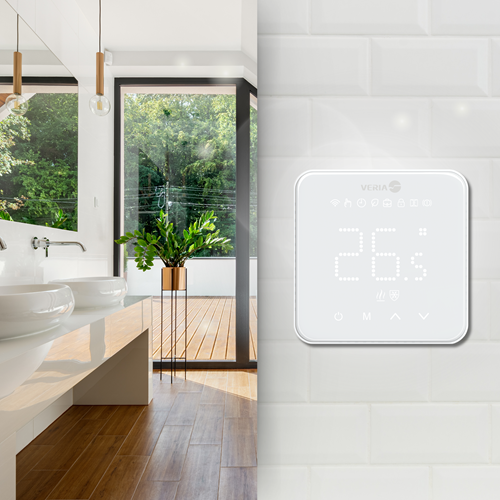

| 189B4071 | Veria Control WT45 White |

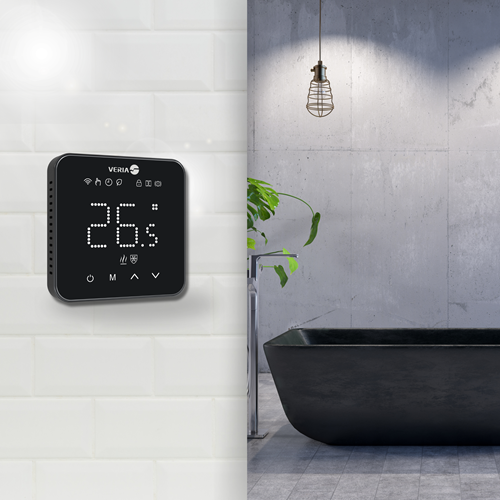

| 189B4072 | Veria Control WT45 Black |
366.8KB
.pdf
Installation & Setup
- Configured via the Smart Life app
- Guided setup process for quick commissioning
- Connection to local Wi‑Fi network for remote access
Control Functions
Programmable timer for scheduled heating periods
Remote control via mobile application
Manual and automatic operation modes
User Experience
- Digital interface for temperature and schedule adjustment
- App-based control for flexible operation
- Designed for everyday usability without advanced technical knowledge
Warranty
The Veria Control WT45 is supplied with a 2-year warranty in accordance with applicable product terms.
